Vertical baling press ORWAK COMPACT 3120

ORWAK COMPACT 3120 is a compact and powerful vertical baler designed for efficient compaction of cardboard and plastics. It offers an extra wide 1000 mm loading opening, intelligent design, quiet operation and bales weighing up to 100 kg. The ideal choice for operations that need to save space, time and waste disposal costs.

Producer: Orwak

Log in or register to get a better price.
*nevzťahuje sa na produkty v akcii a na produkty v prenájme

Delivery within 1-2 weeks
Quote price

Modern solution for cardboard and plastic baling

ORWAK COMPACT 3120 is a modern and reliable solution for efficient waste handling in small and medium-sized operations. The new model from the COMPACT series delivers high performance in a small design, provides a significant reduction in the volume of cardboard, plastics and other lightweight materials, thus saving space and waste disposal costs.

Single-phase power supply – maximum flexibility

It works on a standard 230 V socket, so it does not require special wiring. It is ideal for shops, logistics halls, restaurants or smaller production facilities.

Main benefits

  • Less time spent handling waste
  • More free space and order in the workplace
  • Lower waste disposal costs
  • Higher quality sorting and better material for recycling

Technical Advantages of the 3120

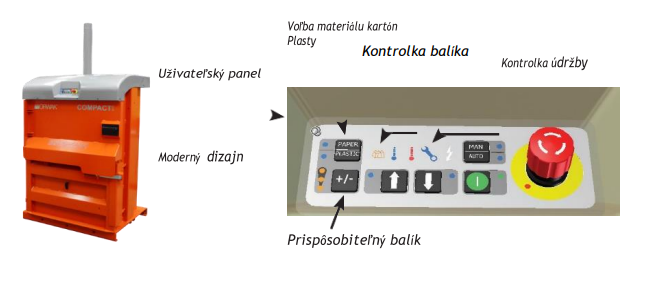

  • Intelligent design and ease of use
  • Automatic start after closing the door
  • Easy material switching
  • Variable bale size

Compact 3120 is ideal for:

  • Paper + cardboard, shredded paper
  • Plastic film + stretch film, plastic bags
  • Other metals + metal clips
  • Other plastics + plastic scraps

Quiet operations for a more pleasant environment

The hydraulic system is designed for low noise (only 62.3 dB), which improves the working environment and allows the baler to be placed in areas close to customers.

Safety and quality according to EN 16500:2014

The Orwak 3120 is designed in accordance with the strict safety requirements of the EN 16500:2014 standard, which sets standards for the safe operation of vertical presses.

Insertion opening width: 1000 mm
height: 460 mm
Pressing cycle 33 seconds
Pressing force HP 6 tons, 60 kN
LP 4 tons, 40 kN
Package size width: 1000 mm
depth: 700 mm
height: 800 mm
Package weight Cardboard: up to 100 kg
Plastic: up to 130 kg
Noise level 62.3 db (A)
Protection degree IP 55
Power supply Single phase 230 V, 50 Hz, 10 A

Dimensions

A B C D E
2342 mm 1184 mm 900 mm 1907 mm 2342 mm (<2000 mm on request)
